Electric end plate 960M Right-facing 12-24V Piston connector 5m Cable

Electric strike 960M with right-handed function, 12-24V voltage, piston contact and 5m cable. For doors with high demands on security and strip pressure. Fire class E/EI 120.

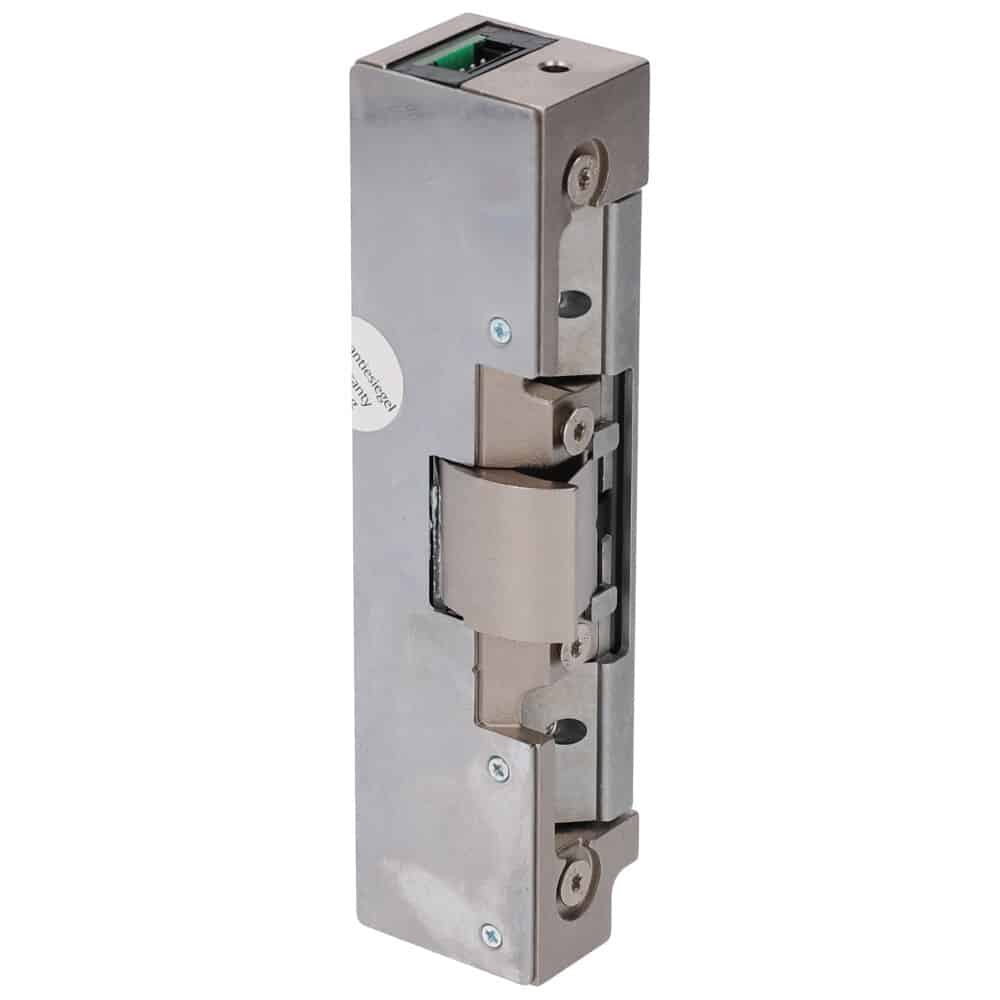

Electric strike 960M is an electric strike designed for doors with high demands on strip pressure and normal security requirements.

This model is particularly suitable for use in door systems used for day locking in shell protection and internal locking in commerce, offices, industry, as well as in entrances and public areas in apartment buildings.

With a right-handed function (locked in the event of a power failure), a breaking strength of 1500 kg (15 kN) and a fire rating of up to E/EI 120, the 960M is suitable for doors that are exposed to higher stresses, including high strip pressures and environments with a high frequency of opening and closing.

The electric strike is also designed to withstand shock and impact, making it a reliable choice for both commercial and industrial environments.

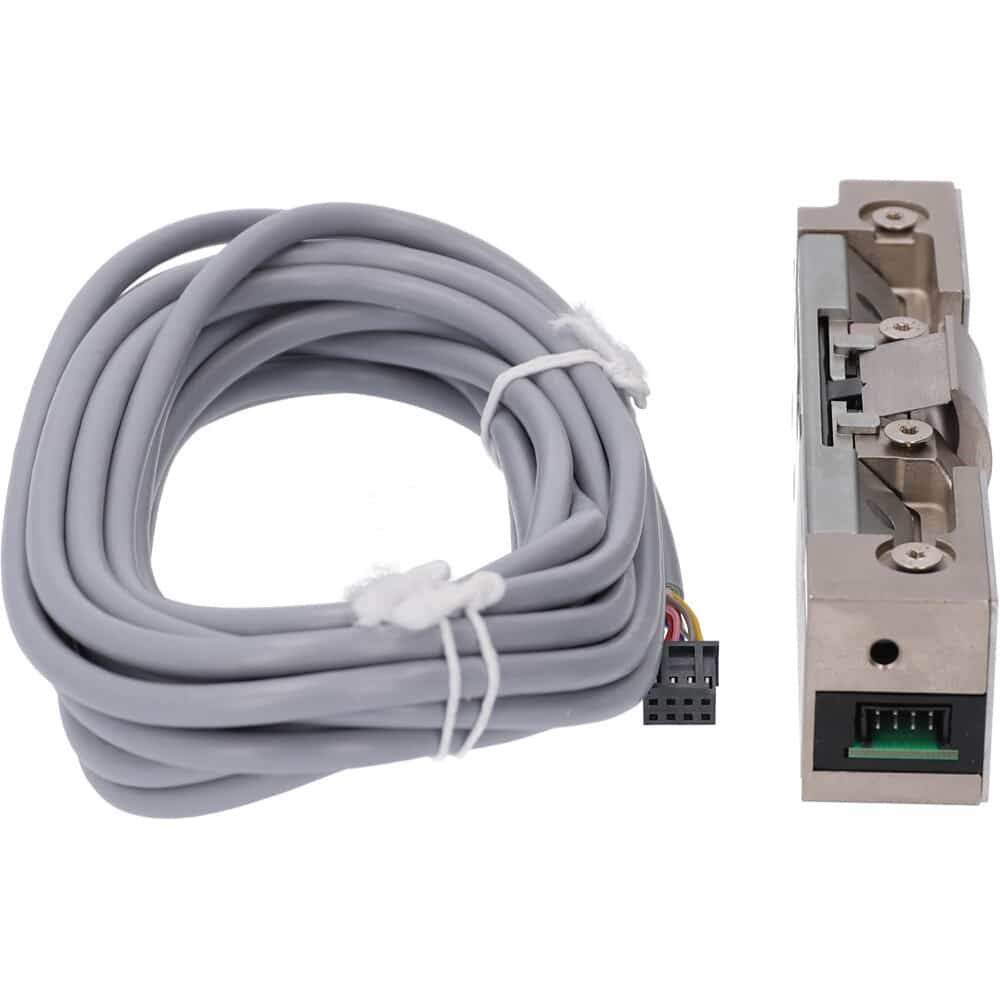

The 960M electric strike is equipped with a piston contact and an anchor contact, and it is supplied with a 5-meter connection cable for easy installation.

It is suitable for use with single or double latch locks and is compatible with all 900 series mounting posts.

The patented strip pressure technology allows the door to be opened even when exposed to strip pressure of up to 200 kg.

The electric strike plate is robust, made of steel, and has a steel pivot that ensures high durability and long service life.

Key Features and Benefits:

• Correct function: Locked in case of power failure, ensures that the door remains locked in the event of a power failure.

• Breaking strength: High breaking strength of 1500 kg (15 kN) for extra safety.

• Fire rating: Approved for fire resistance up to E/EI 120.

• High shock and impact resistance: Robust construction that can withstand tough environments.

• Strip pressure: Opens even with strip pressure of up to 200 kg.

• Piston contact and armature contact: For reliable and safe operation.

• Long cable: 5 meters connection cable included for easy installation.

Compatibility: Fits single or double-leaf locks and is compatible with all 900 series mounting posts.

It is perfect for use in doors with high security requirements and molding pressure, and can be used in both commercial and industrial environments.

Technical Specifications:

• Product width: 26.5 mm

• Product height: 140 mm

• Product depth: 35 mm

• Cable length: 5 meters

• Power supply: 12-24V AC/DC, +15% / -10%

• Breaking strength max: 1500 kg (15 kN)

• Strip pressure: 200 kg

• Starting current at 24V: 240mA, operating current 145mA

• Starting current at 12V: 620mA, operating current 310mA

• Color/Surface treatment: Zinc plated

• Piston contact: Yes

• Voltage max: 27.6 V

• Voltage min: 10.8 V

• Fire class: E/EI 120
