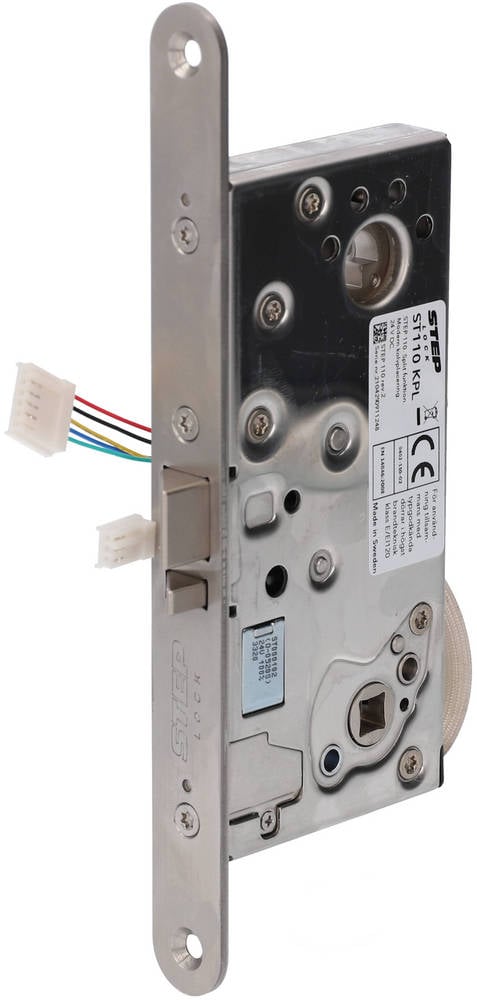

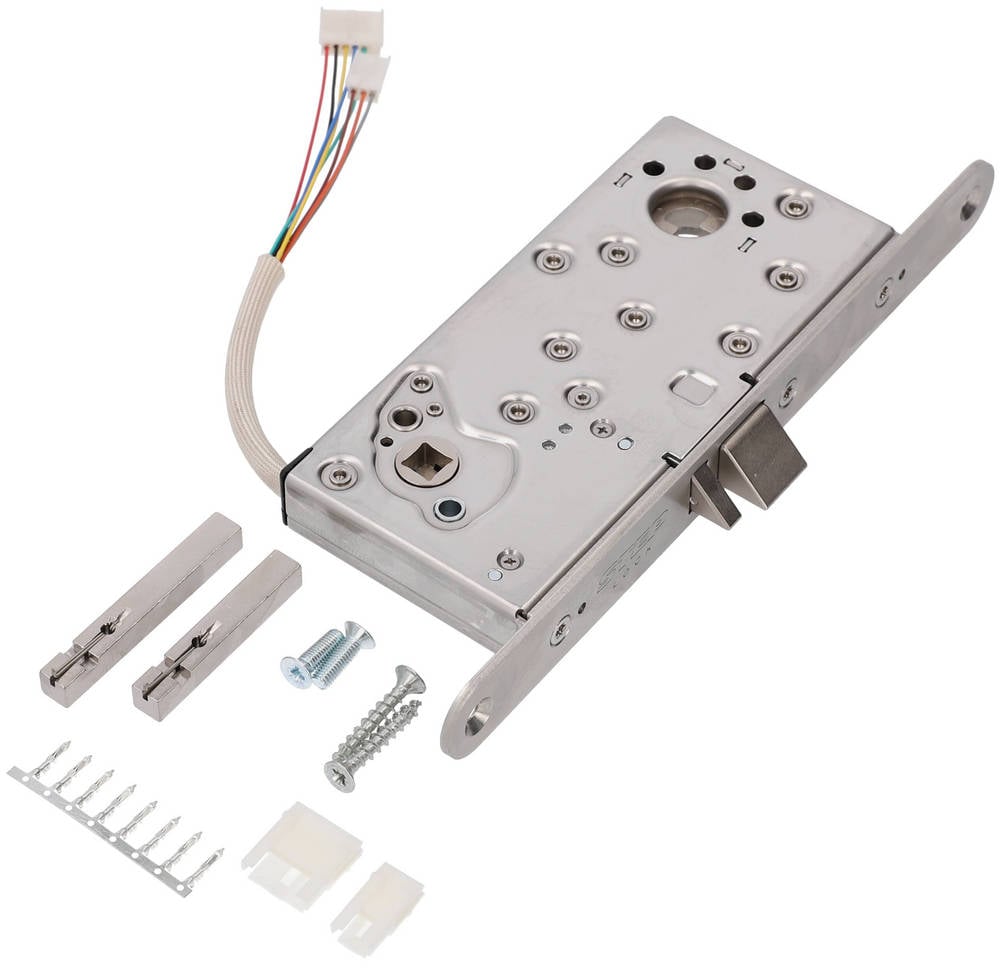

STEP 110 Modern Split 12-24 V electric pressure lock

STEP 110 Modern Split 12-24 V electric pressure locks are intended for electrically controlled locking. Check the function, voltage, door depth and door environment to ensure that the lock fits the current installation.

Characteristics

• Dorndjup: 50 mm
• Door hanging: Right, Left
• Emergency evacuation: Yes
• Function: Switchable Right/Reverse
• Split spindle: Yes
• Fire-tested: 120 min
• Cable included: No
• Complete set: No

Details

• Modern piston placement corresponds to Assas connect
• Split function
• Tested and certified for fire resistance up to class FE/EI 120.
• Microswitch single-pole alternating, max. 30 V DC, 1 A.
• Built-in patent-pending Direct DriveTM – function that provides direct control of the pressure.
• Built-in microswitches indicate closed and interlocked positions as well as pressure actuation.
