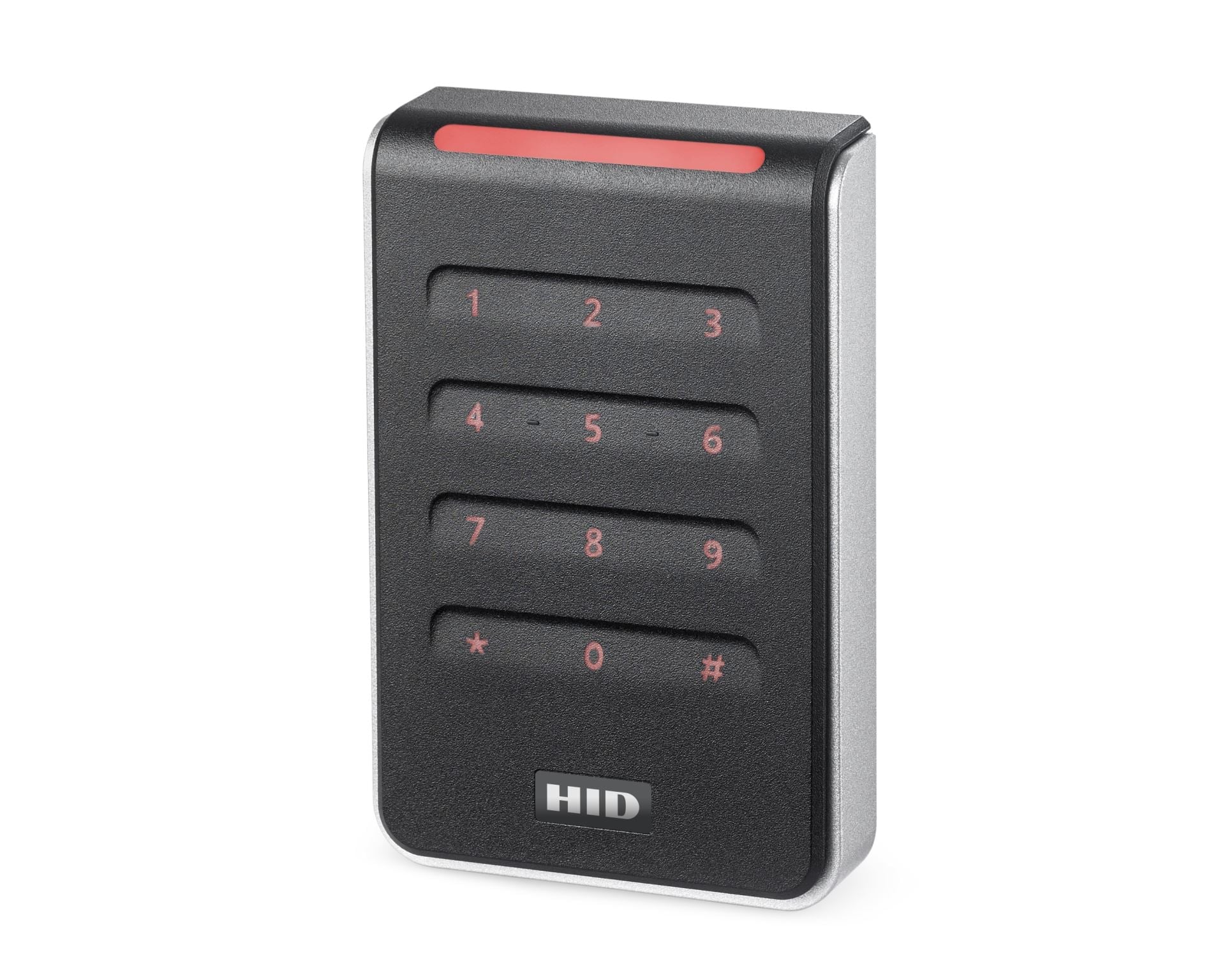

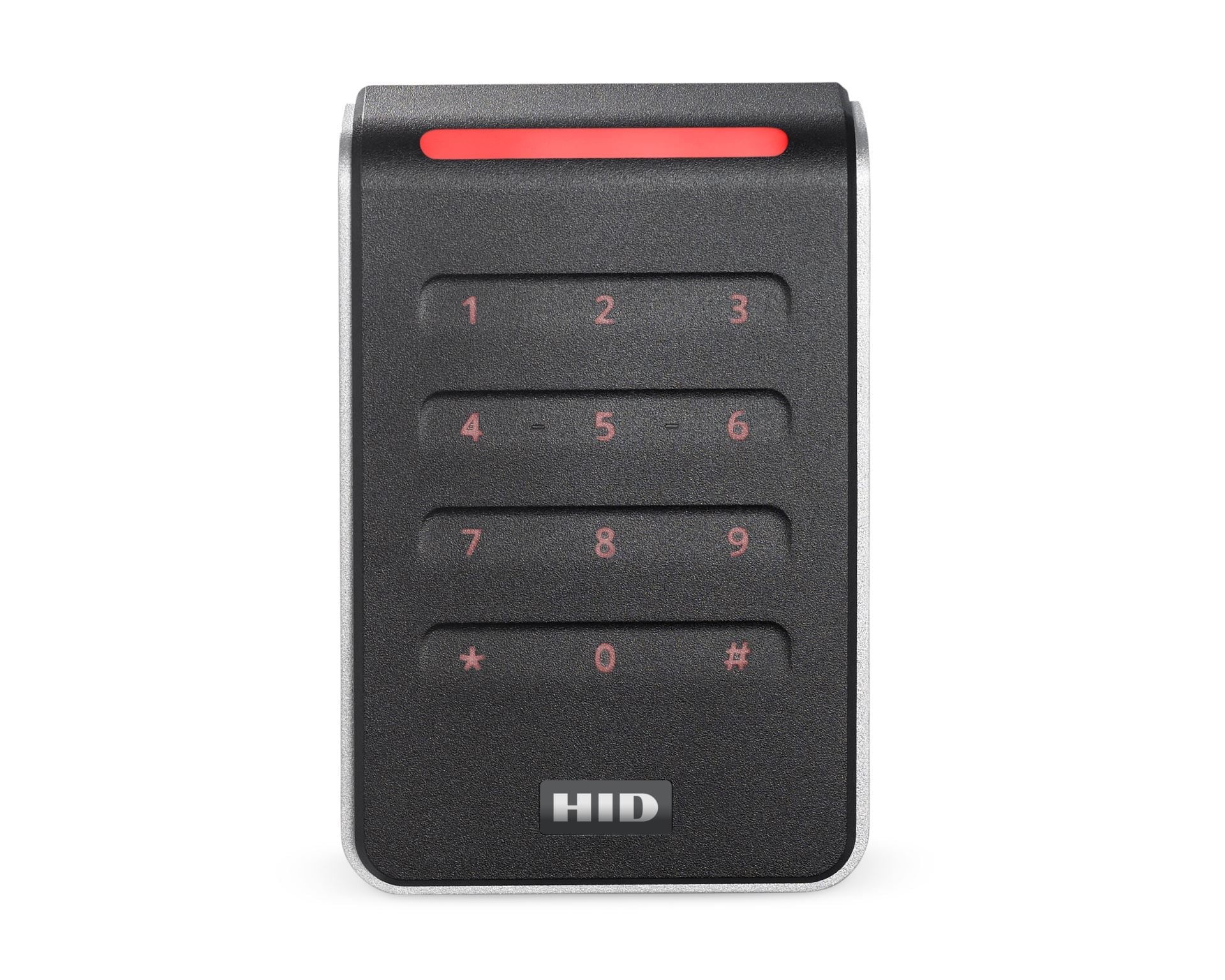

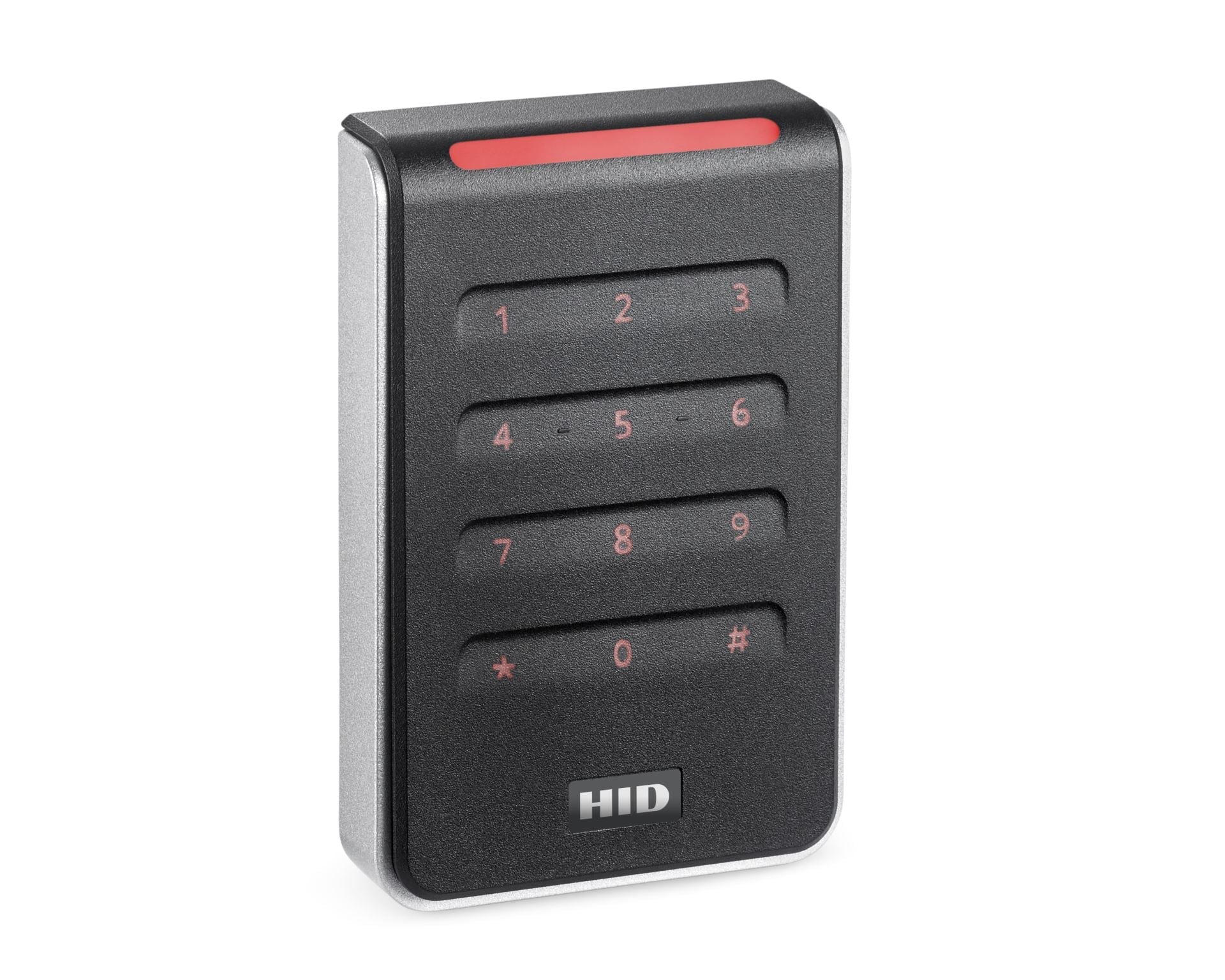

HID Signo 40K – RFID card reader with keypad for high-security access control

The HID Signo 40K is designed for high-security businesses where multi-factor authentication is an essential part of the access control system. By combining a contactless RFID reader with an integrated capacitive keypad, users can identify themselves with a card, mobile phone, PIN code or a combination of these.

The larger model is intended for mounting on a standard junction box and is perfect for offices, government agencies, industry, data centers, hospitals and other safety-classified environments.

The reader is supplied with terminal connection for quick and easy installation.

Multiple authentication methods

Signo 40K offers flexible and secure authentication through support for:

• RFID card
• Key tags
• Mobile phone via Bluetooth®
• NFC
• PIN code
• Card + PIN for two-factor authentication

It also supports Apple Wallet via Enhanced Contactless Polling (ECP) on compatible models, enabling the use of digital access cards on Apple devices.

Broad support for card technologies

13.56 MHz

• HID iCLASS Seos®
• HID iCLASS®
• HID iCLASS SE®
• HID CEPAS
• MIFARE® Classic
• MIFARE® DESFire®

125 kHz

• HID Prox®
• Indala Prox®
• AWID Prox®
• EM Prox®

Mobile access

• HID Mobile Access®
• Bluetooth® Low Energy (BLE)
• NFC

Future-proof communication

Signo 40K supports Open Supervised Device Protocol (OSDP) for encrypted and bidirectional communication between card readers and access controls. For compatibility with existing systems, there is also support for Wiegand.

Bluetooth is also used for easy configuration and firmware updates via HID Reader Manager.

Benefits

• Integrated capacitive keypad
• Multi-factor authentication
• Bluetooth® Low Energy (BLE)
• NFC
• HID Mobile Access®
• Apple Wallet (ECP)
• OSDP and Wiegand
• Terminal connection
• Support for 125 kHz and 13.56 MHz
• Compatible with HID Prox®, Seos®, iCLASS® and MIFARE®

Technical specifications

Manufacturer's part number

• 40KTKS-00-000000

Technique

• RFID
• Bluetooth® Low Energy (BLE)
• NFC

Frequencies

• 125 kHz
• 13.56 MHz
• 2.4GHz Bluetooth

Supported cards

13.56 MHz

• HID iCLASS Seos®
• HID iCLASS®
• HID iCLASS SE®
• HID CEPAS
• MIFARE® Classic
• MIFARE® DESFire®

125 kHz

• HID Prox®
• Indala Prox®
• AWID Prox®
• EM Prox®

Mobile access

• HID Mobile Access®
• Bluetooth®
• NFC

Communication

• OSDP
• Wiegand

Connection

• Terminal connection

Mounting

• Standard appliance box (Single Gang)
• Flat wall

Weight

• 0.50 kg

Areas of use

• Pass system
• Business
• Authorities
• Industry
• Data center
• Hospital
• Office
• Security-rated buildings
• Server room
• Critical infrastructure
