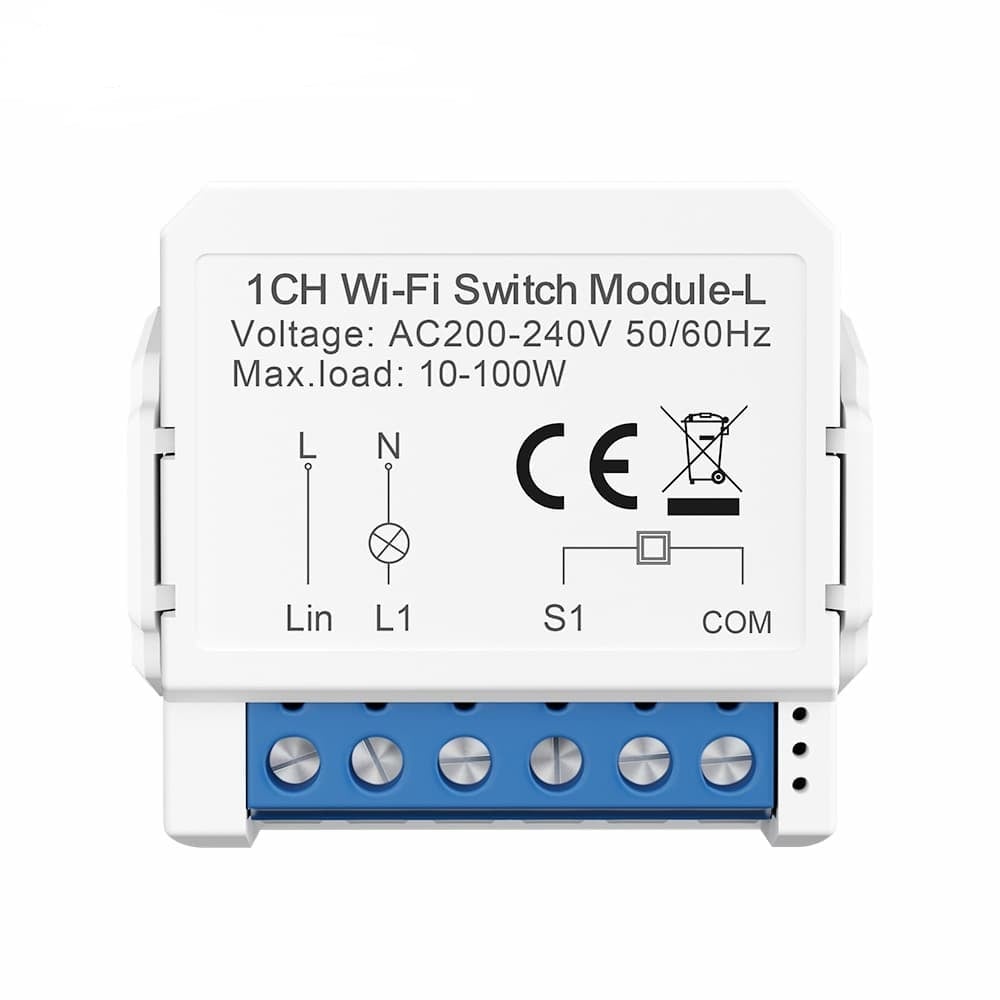

Stonehouse Smart WiFi Relay Module 1-channel without neutral with bypass capacitor (included)
Availability:
🟢 15 st i lager (fler kan beställas)
Stonehouse Smart WiFi Relay Module 1-channel without neutral makes it possible to control lighting smartly via app without the need for a neutral conductor behind the switch.
The module is mounted behind an existing switch or in a junction box and is supplied with a bypass capacitor for installations without a neutral.
Stonehouse Smart WiFi Relay Module 1-channel without neutral with bypass capacitor is a compact smart switch for those who want to upgrade existing lighting to app control without having to pull out a neutral conductor to the switch.

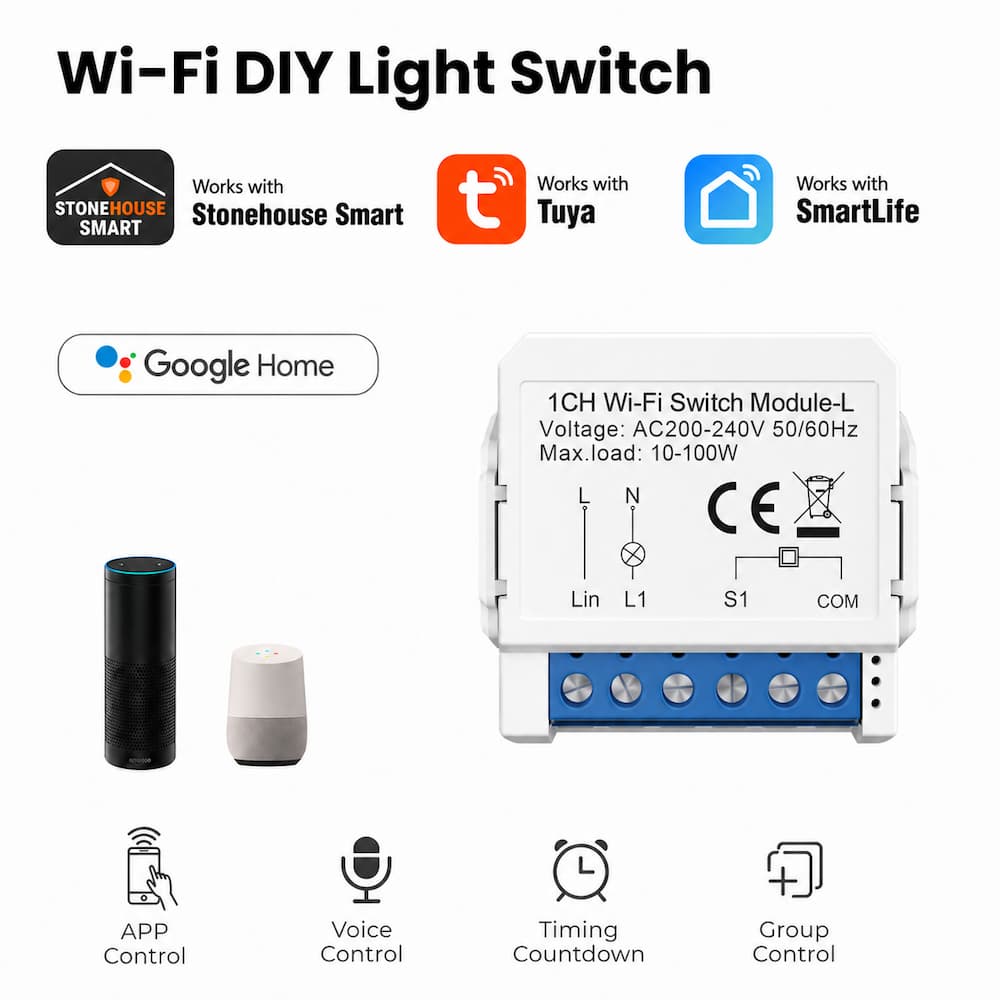

The module is connected directly to WiFi 2.4 GHz and does not require a gateway or hub. It can be controlled via Stonehouse Smart, Tuya Smart or Smart Life, which makes it easy to turn the lights on and off from your mobile phone, no matter where you are. The product also works with Google Home for smooth voice control.

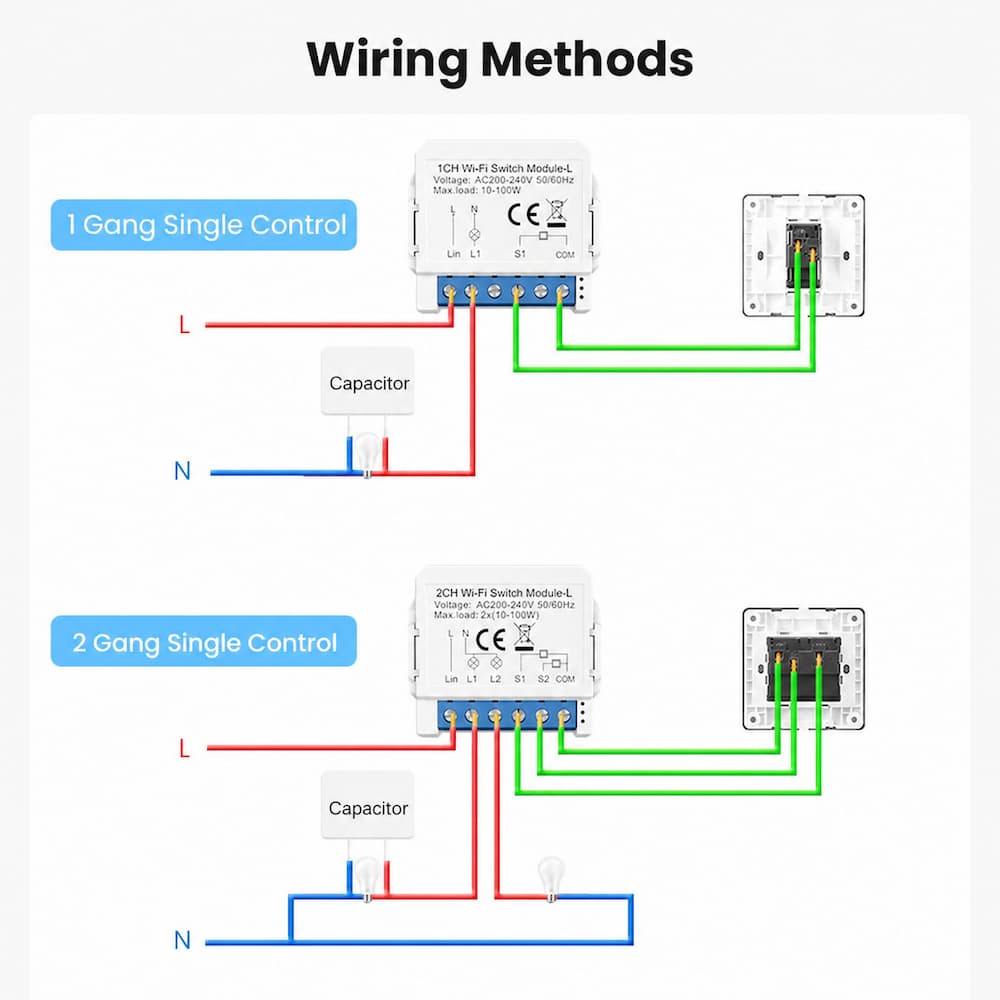

Since the model is designed for installations without zero using the supplied bypass capacitor which is mounted at the lamp according to the wiring diagram. This makes the product particularly useful in older electrical installations where there is no neutral conductor behind the switch.
The compact size of the 39 × 39 × 19mm allows the relay module to fit into many standard sockets and can be installed discreetly behind an existing switch. You can continue to use your regular wall switch while getting smart control via app, timer and schedule.
Key features
Smart WiFi relay with 1 channel
For installation without neutral behind the switch
Bypass capacitor included
Make existing light switch smart
Controlled via Stonehouse Smart, Tuya Smart and Smart Life
Works with Google Home
Direct connection via WiFi 2.4 GHz
No gateway or hub required
Remote app control
Timer, schedule and countdown support
Can be used with existing wall switch
Compact format for mounting behind switches or in junction boxes
Stonehouse Smart WiFi Relay Module 1-channel without neutral with bypass capacitor
SKU
SHS-RELAY-WIFI-NN-1CH
Product type
Smart WiFi relay / smart switch
Number of channels
1 channel
Installation type
Without neutral, bypass capacitor at the lamp
Communication
WiFi 2.4 GHz
Protocol
WiFi IEEE 802.11 b/g/n
App
Stonehouse Smart, Tuya Smart, Smart Life
Voice control
Google Home
Voltage
AC200-240V 50/60Hz
Max current
10A
IP class
IP20
Working temperature
-10°C to +40°C
Size
39 × 39 × 19mm
USB Type-C
No
Camera
No
Certification
CE
Included
Relay module and bypass capacitor
Frequently asked questions
What is Stonehouse Smart WiFi Relay 1 Channel?
Stonehouse Smart WiFi Relay 1 Channel is a smart relay that makes it possible to control an electrical circuit via mobile app, automations and voice control without replacing existing switches.
What is the product used for?
The product is used to make existing lighting or other compatible electrical equipment smart and remotely controllable via mobile phone.
How many channels can be controlled?
The module has one channel that can be controlled individually via the app.
Does the relay require a hub or gateway?
No, the relay connects directly to your 2.4 GHz WiFi network and does not require a separate hub or gateway.
What apps does the product work with?
The relay works with Stonehouse Smart, Tuya Smart and Smart Life.
Can I control the relay when I am not at home?
Yes, as long as the relay is connected to the internet, you can control it from your mobile phone wherever you are.
Does the product work with Google Home?
Yes, the product supports Google Home and can be controlled with voice commands via Google Assistant.

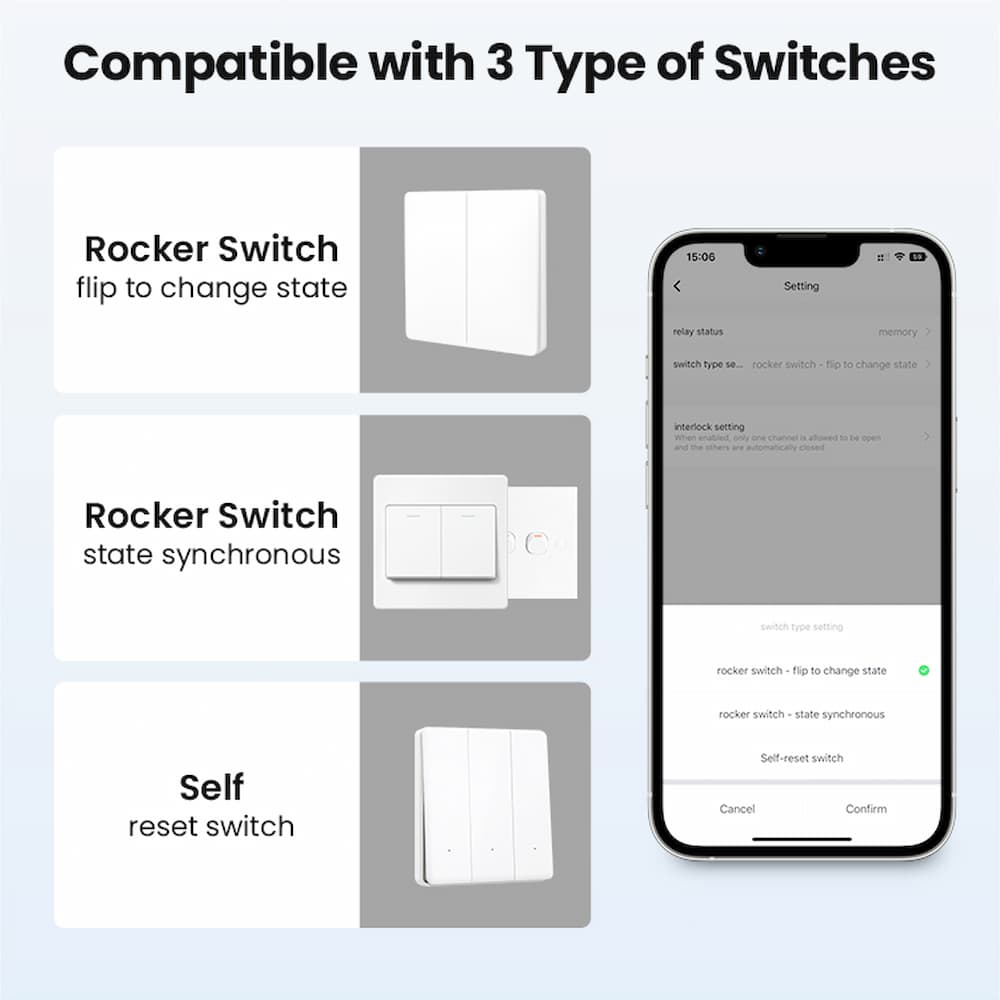

Can I use my existing wall switches?
Yes, the relay is designed to work with existing wall switches, allowing you to control the lighting both manually and via the app.
Can I create schedules and automations?
Yes, via the app you can create schedules, timer functions, countdowns and various smart automations.
Can multiple people control the relay?
Yes, you can share access with family members or other users through the app.

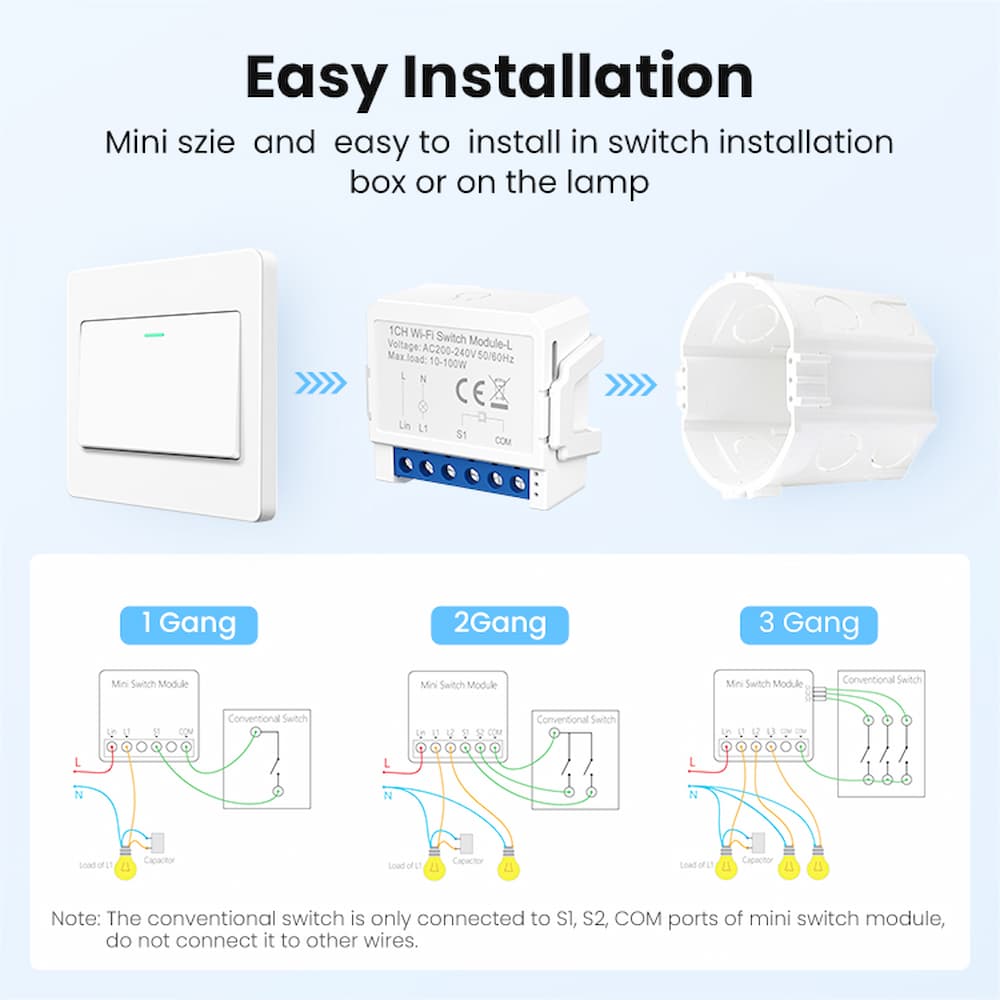

Where is the relay module mounted?
The compact module can be mounted behind many standard switches or in a junction box.
What WiFi frequency is supported?
The product uses WiFi 2.4 GHz and does not work with pure 5 GHz networks.
What input voltage does the relay support?
The relay is compatible with AC100–240V, 50/60Hz.
How high a load can the relay handle?
The relay can handle up to 16A load depending on installation and connected equipment.
What is the enclosure class of the product?
The product has an IP20 protection class and is intended for indoor use.
What material is the relay made of?
The housing is made of flame-retardant PC V0 material for increased safety.
What are the dimensions of the relay?
The module measures 39 × 39 × 19 mm and has a compact format that fits many installation spaces.
Is the product CE certified?
Yes, the product is CE certified.
Is the relay suitable for smart lighting control?
Yes, the relay is particularly suitable for controlling lighting but can also be used for other compatible electrical equipment within the relay's load limits.
What is the advantage of a channel?
One channel makes the product ideal for controlling a single lighting group or electrical circuit and is a cost-effective option for simpler installations.
What is Stonehouse Smart?
Stonehouse Smart is an app developed and updated by Swedish Stonehouse Security together with its partner Tuya Inc. The app is used to control and automate smart home products such as lighting, sensors, cameras and alarms from a common platform.
WiFi or Zigbee? Which technology is best for your smart home?
❓ What is the difference between WiFi and Zigbee?
Answer: WiFi devices connect directly to your wireless network and do not require an additional gateway. Zigbee instead uses its own Mesh network and requires a Zigbee Gateway to communicate with the Stonehouse Smart app. WiFi is great for cameras and relays, while Zigbee is ideal for sensors and larger smart homes.
❓ Do I need a Zigbee Gateway?
Answer: Yes. To use Zigbee products, you need a Stonehouse Smart Zigbee Gateway. The gateway connects to your router and acts as the hub that allows all Zigbee devices to communicate with each other and with the Stonehouse Smart app.
❓ Do WiFi products need a gateway?
Answer: No. WiFi products connect directly to your existing WiFi network and do not require a separate gateway or hub.
❓ Can I use WiFi and Zigbee at the same time?
Answer: Yes. Stonehouse Smart is designed to support both WiFi and Zigbee products in the same app. Many people choose to combine the technologies to create a flexible and future-proof smart home.
❓ Why does Zigbee have such a long battery life?
Answer: Zigbee sensors are in sleep mode most of the time and only activate when they need to send information, such as movement, temperature changes or when a door is opened. This provides very low power consumption and long battery life.
❓ How does Zigbee Mesh work?
Answer: Many Zigbee devices powered by 230V act as repeaters and send the signal to the next device. In this way, a Mesh network is built that provides better coverage and higher stability the more fixed Zigbee devices are installed.
❓ Which Zigbee devices work as repeaters?
Answer: Most Zigbee devices that are powered by 230V, such as relay modules, dimmers, smart plugs and wall switches, normally work as repeaters. Battery-powered sensors usually do not work as repeaters.
❓ How long is the range of Zigbee?
Answer: The range is affected by walls, building materials and other obstacles. Typically, the range is about 10 to 25 meters indoors between two Zigbee devices. Thanks to Mesh technology, the total coverage can be significantly greater when more devices are installed.
❓ Is WiFi or Zigbee best?
Answer: It depends on the application. WiFi is an excellent choice for cameras, relays, energy metering and products that need direct internet connection. Zigbee is best suited for sensors, automation and larger installations where long battery life and stable communication are important.
❓ What is Stonehouse Smart?
Answer: Stonehouse Smart is a growing ecosystem for smart homes where WiFi and Zigbee products work together in the same app. The range is continuously developing and includes smart lighting, electrical control, cameras, security, climate, irrigation and other smart solutions for homes and businesses.
