Zebra DS2208-SR handheld 2D barcode reader (reader only)

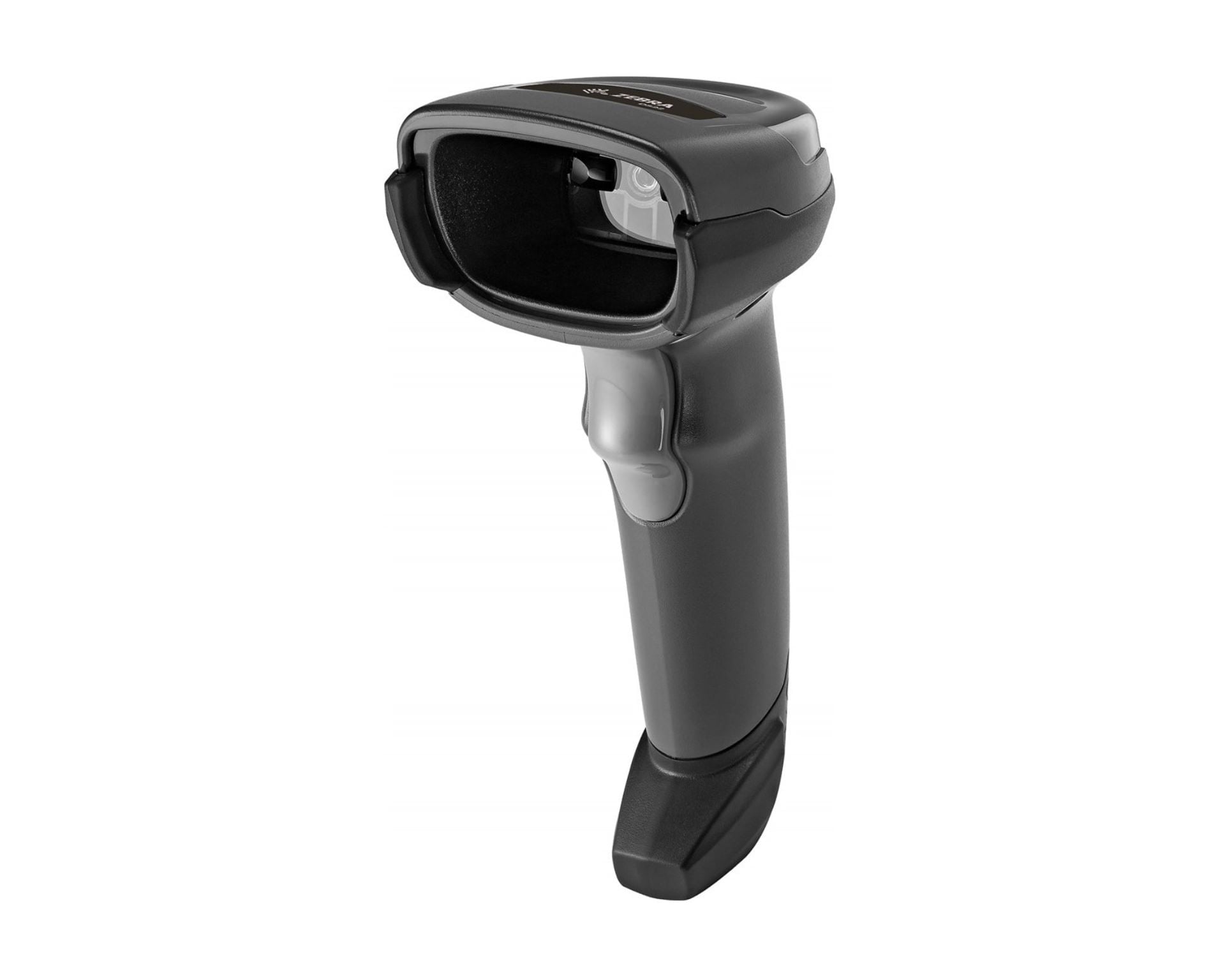

Zebra DS2208-SR Handheld 2D Barcode Scanner

The Zebra DS2208-SR is a powerful and user-friendly 2D imager developed for businesses where fast and reliable barcode scanning is essential. The scanner can read both traditional 1D barcodes and modern 2D codes such as QR codes, Data Matrix and PDF417, both from paper and mobile screens.

The omnidirectional scanning means that the user does not need to align the barcode precisely. It is enough to point towards the code for fast and reliable reading, which reduces the need for training and increases the work rate.

The DS2208 is delivered pre-configured and works straight out of the box. Thanks to automatic host system identification and support for USB, RS232, Keyboard Wedge and IBM RS485, installation is quick and easy. Furthermore, the scanner supports over 90 international keyboards, which makes it suitable for international installations.

Medical zebras PRZM Intelligent Imaging reads poorly printed, damaged, or hard-to-read barcodes with high precision, reducing the number of misreads and improving efficiency.

The sturdy construction withstands repeated drops from 1.5 meters against concrete and has enclosure class IP52, which makes it suitable for daily use in demanding environments.

Benefits

• Reads both 1D and 2D barcodes
• Omnidirectional scanning
• connect and use, ready to use immediately
• Reads barcodes from both paper and mobile screens
• PRZM Intelligent Imaging for fast and secure scanning
• Support for over 90 international keyboards
• USB, RS232, Keyboard Wedge and IBM RS485
• Ergonomic and lightweight design
• IP52-rated
• Survives drops from 1.5 metres
• 5-year manufacturer's warranty

Suitable for

• Point of sale (POS) system
• Stores
• Stock
• Logistics
• Receptions
• Ticket inspection
• Hotel
• Restaurants
• Healthcare
• Inventory

Technical specifications

Property
Specification

Model
Zebra DS2208-SR

Manufacturer's part number
DS2208-SR00007ZZWW

Type
Handheld 2D imager

Reading
1D and 2D barcodes

Scanning
Omnidirectional

Scanning distance
1.23–36.8 cm

Image sensor
640 × 480 pixels

Minimum resolution
4 mil (Code 39/128)

Connections
USB, RS232, Keyboard Wedge, IBM 46XX (RS485)

Keyboard
Over 90 international languages

Indication
LED and adjustable sound signal

Protection class
IP52

Drop resistance
Repeated falls from 1.5 meters

Measure
165 × 66 × 99 mm

Weight
Approximately 162 g (barcode reader)

Guarantee
2 years

Product weight (kit)
0.60 kg
