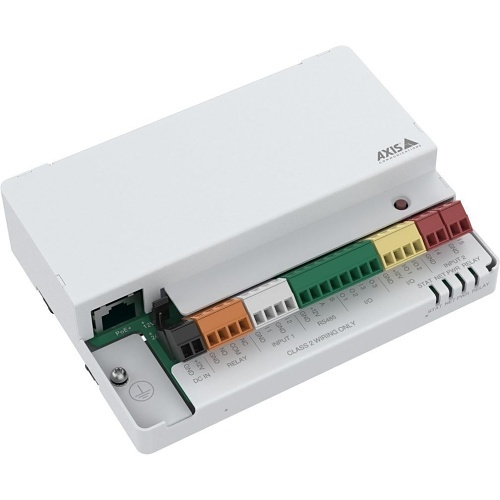

AXIS A9210 Relämodul för I/O i nätverk

The AXIS A9210 Network I/O Relay Module is a sophisticated interface device designed to expand the capabilities of security and building management systems.

By providing multiple input/output connections in a single network device, it enables comprehensive monitoring and control of various peripheral devices and systems.

Comprehensive I/O Configuration
The A9210 offers a total of 10 I/O ports with flexible configuration options:

• 2 configurable I/Os that can be set as either inputs or outputs

• 5 dedicated digital inputs with supervision capability (0-12V DC, 4 states)

• 3 digital outputs (open drain, max 30V DC, 100mA each)

• 1 Form C relay contact (NO/NC) rated for 2A at 30V DC

The supervised inputs feature programmable end-of-line resistors (1K, 2.2K, 4.7K, and 10K), providing enhanced security monitoring by detecting tampering or cable cuts.

The module also includes a 12V DC power output (50mA) for supporting connected devices.

Scalable System Expansion
A key advantage of the A9210 is its multi-drop capability, allowing connection of up to 16 expansion modules through a single IP connection.

This scalability enables support for up to 128 I/Os and 64 relays, making it ideal for large-scale installations without requiring additional network infrastructure.

Robust Connectivity and Integration
The module includes an RS485 port with Modbus support, facilitating integration with industrial control systems and building automation.

It supports standard network protocols including IPv4/IPv6, HTTP/HTTPS, and SNMP, ensuring compatibility with most security and management systems.

Built on Axis open platforms, the A9210 supports VAPIX API and AXIS Camera Application Platform (ACAP), enabling custom application development and seamless integration with Axis video management systems and third-party solutions.

Enhanced Security Features
Security is reinforced through Axis Edge Vault, a hardware-based cybersecurity platform that provides:

• Secure boot and signed firmware verification

• Secure keystore for cryptographic operations

• FIPS 140-2 certified hardware security module

• Encrypted filesystem (AES-XTS-Plain64 256bit)

These features ensure the device’s integrity and protect against unauthorized access throughout its lifecycle.

Durable Construction and Flexible Installation
Housed in a sturdy steel casing, the A9210 is designed for demanding environments with an operating temperature range of -40°C to 55°C (-40°F to 131°F).

It supports multiple mounting options including wall mount and DIN rail installation, with color-coded, detachable terminal blocks for simplified wiring.

The module can be powered via Power over Ethernet (PoE+ IEEE 802.3at) or 12V DC input, providing flexibility in installation locations.

The relay output supports both wet and dry contacts, accommodating various control applications.

Application Versatility
The AXIS A9210 is suitable for numerous applications including:

• Access control system integration

• Environmental monitoring (temperature, humidity, water detection)

• Alarm system expansion

• Industrial automation

• Building management systems

• Perimeter protection enhancements

Summary
The AXIS A9210 Network I/O Relay Module provides a secure, scalable, and versatile solution for expanding system capabilities beyond video surveillance.

Its comprehensive I/O configuration, robust security features, and flexible integration options make it an essential component for modern security and automation systems, enabling centralized monitoring and control of diverse devices and sensors through a single network connection.

Key Specifications:

• I/O Ports: 10 total (2 configurable I/O, 5 inputs, 3 outputs)

• Relay: 1 Form C contact (2A, 30V DC)

• Expansion: Supports up to 128 I/Os and 64 relays

• Connectivity: Ethernet, RS485 (Modbus)

• Power: PoE+ (IEEE 802.3at) or 12V DC

• Security: Axis Edge Vault with secure boot

• Operating Temperature: -40°C to 55°C

• Mounting: Wall or DIN rail

• Warranty: 5-year warranty
