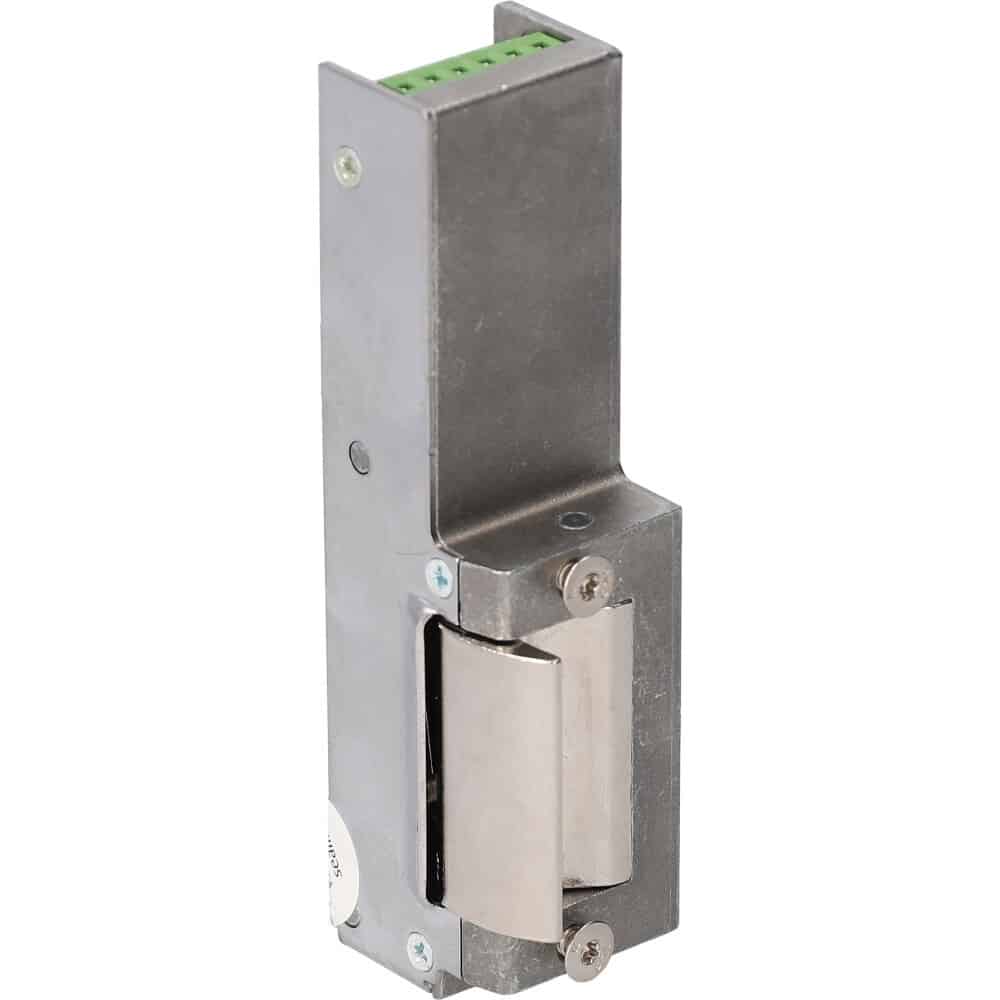

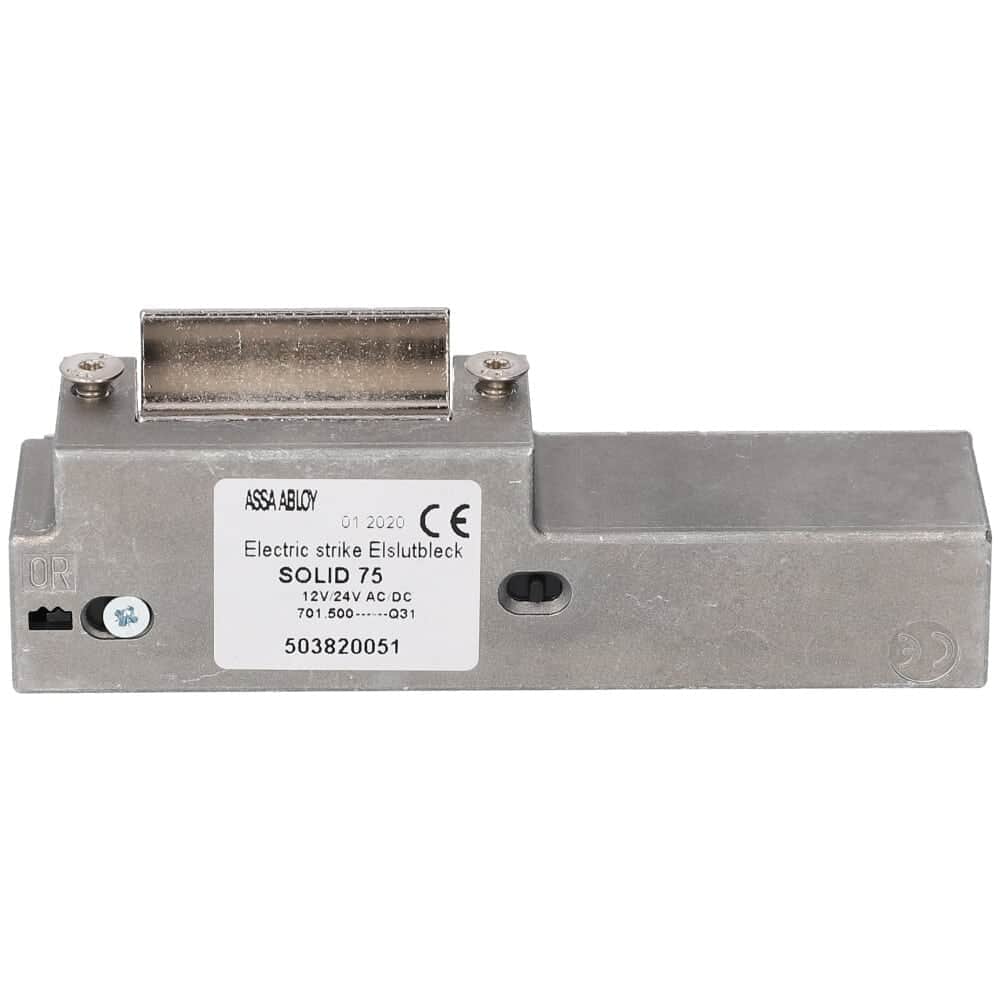

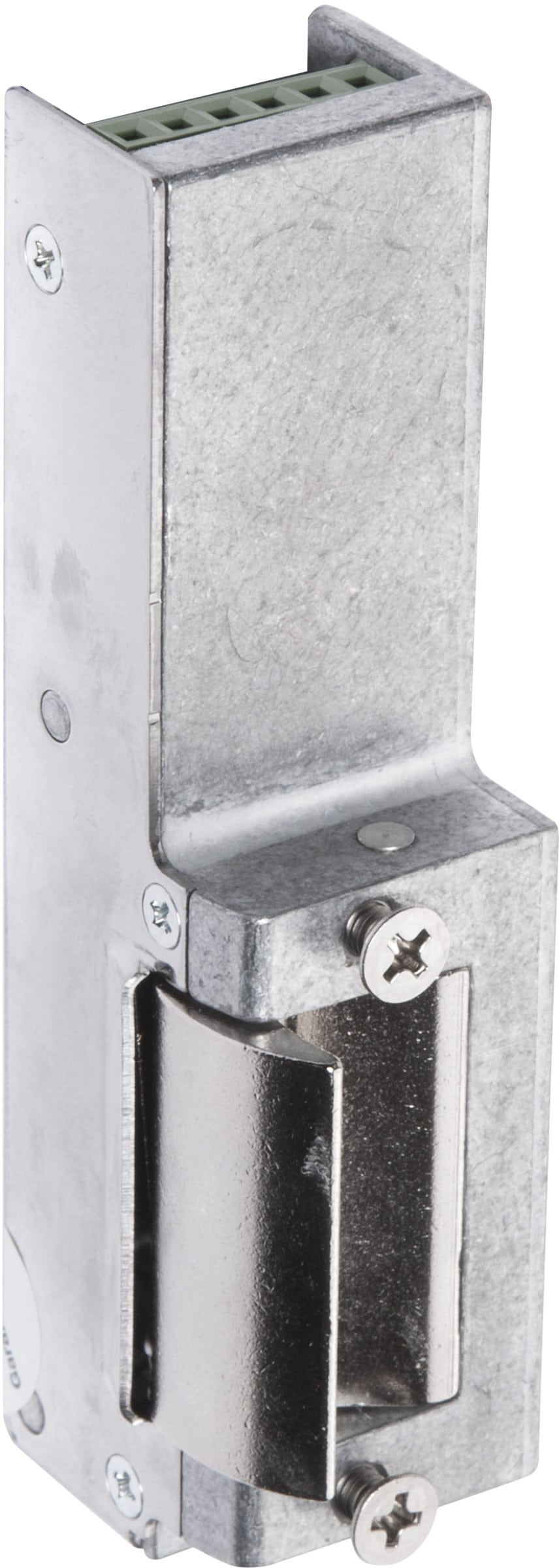

Electric end plate 75 Switchable 12-24V

ASSA ABLOY Standard electric strike 75 Adjustable 12-24V is designed for doors with normal security requirements.

The lock can be easily switched between forward and reverse function, which provides flexibility depending on the need to have the door locked or unlocked in the event of a power failure.

It is particularly suitable for use in fire compartment dividing doors and in combination with interlocked single-latch or double-latch locks.

With a breaking strength of 700 kg (7 kN) and a robust construction with a bronze twist lock and zinc alloy lock housing, it offers both durability and high security.

The electric strike is also equipped with built-in transient protection to protect against electrical interference, making it extra reliable in sensitive environments.

Its high impact and vibration resistance makes it perfect for doors that require long-lasting and safe function.

Specifications:

• Breaking strength: 700 kg (7 kN)

• Door hinge: Right, left

• Lock type: Single latch lock, Double latch lock

• Operating voltage: 12-24V

• Color/Surface treatment: Zinc plated

• Piston contact: No

• Voltage AC/DC: AC/DC

• Max Voltage: 26.4V

• Min Voltage: 10.8 V

• Double twist drop: No

• Forward/Reverse: Switchable (Forward/Reverse)

Areas of use
Electric Strike 75 Adjustable 12-24V is perfect for use in perimeter protection, internal locking and security in commercial buildings, offices and apartment buildings.

It provides a flexible and safe solution for doors that need to be adaptable to different security requirements.
