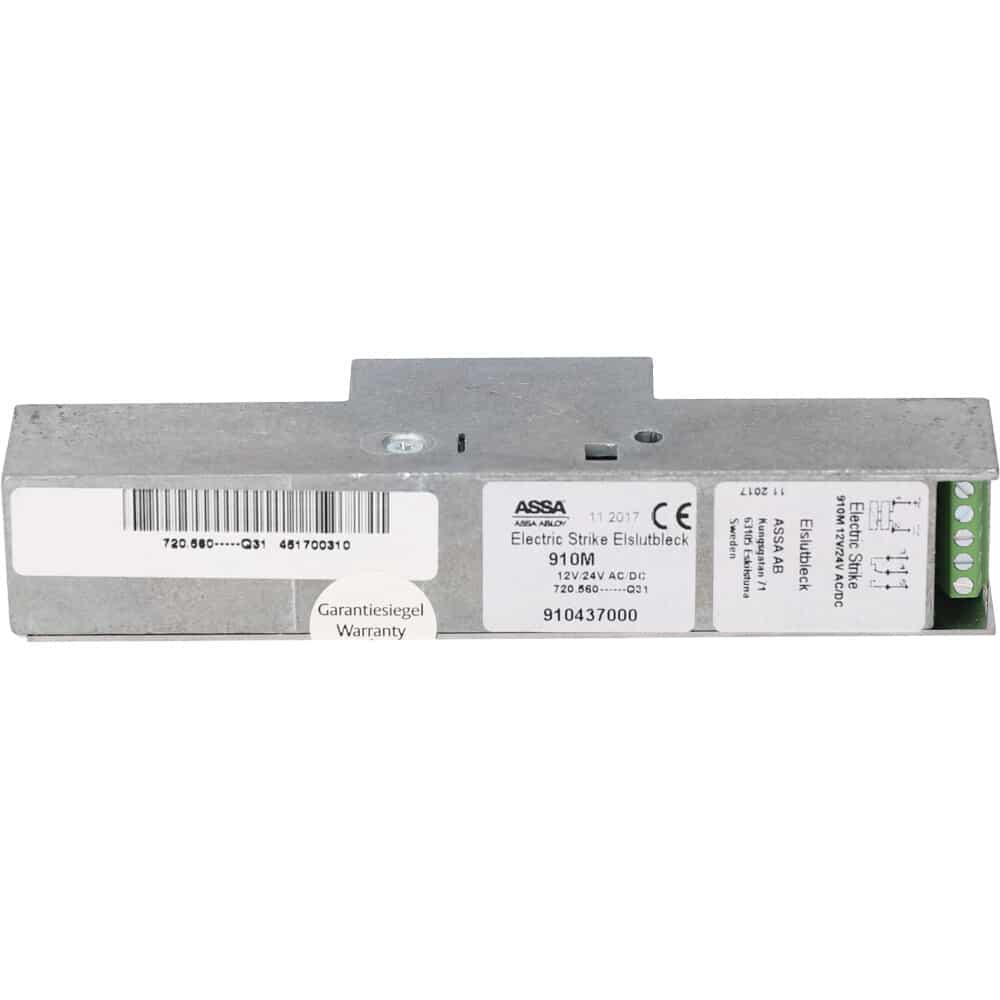

Electrical terminal plate 910M Right-facing 12-24V Piston contact

ASSA Electric Strike 910M Right-Hand 12-24V Piston Contact is part of the 900 series and offers security and durability for doors that require high security and frequent use.

The lock has a fail-safe function, meaning it remains locked in the event of a power failure, increasing safety in emergency situations.

With a breaking strength of 800 kg (8 kN) and high vibration and impact resistance, this electric strike is perfect for doors in high-frequency applications.

The lock body is made of zinc alloy and the twist lock is made of bronze, which provides both durability and long life. The improved strip pressure function allows the door to be opened even under pressure.

The electric strike is equipped with a plunger contact and built-in transient protection to protect against electrical interference, making it a reliable choice for installation environments that require extra stability.

Specifications:

• Breaking strength: 800 kg (8 kN)

• Door hinge: Right, left

• Strip pressure: 12 kg

• Lock type: Single latch lock, Double latch lock

• Operating voltage: 12-24V

• Color/Surface treatment: Zinc plated

• Piston contact: Yes

• Voltage AC/DC: AC/DC

• Max Voltage: 27.6V

• Min Voltage: 10.8 V

• Double twist drop: No

• Right/Reverse: Right

• Product width: 27 mm

• Product depth: 40 mm

• Product height: 140 mm

Areas of use
The 910M electric strike is perfect for doors used in shell protection, internal locking and security solutions for commercial buildings, offices and industrial environments where reliability and durability are crucial.
