Electrical termination plate STEP 48 Reverse 24V Piston contact

STEP 48 Preload is an electric strike with reverse function, designed to ensure security in spaces that are locked with a knob or key.

Equipped with a piston contact and protection diode, as well as a breaking strength of 9 kN (approx. 900 kg).

Electric strike STEP 48 Preload is a high-security electric strike that is ideal for doors in spaces that require locking with a knob or key.

To provide extra security and functionality, it is possible to install a bolt indicator (ST4880), which can be used to block the door's access system or door automation when the lock housing's hook bolt or straight bolt has been mechanically unlocked.

This electric strike is equipped with STEP's patented strip pressure technology, which allows the door to be unlocked even if it is subjected to pressure of up to 40 kg.

With a breaking strength of 9 kN (approx. 900 kg) and the ability to open despite a strip pressure of 0.4 kN (approx. 40 kg) in both forward and reverse operation, STEP 48 Preload offers both safety and reliability.

The built-in piston switch provides indication of door status (closed/open), making it easy to integrate with access control systems and other security solutions.

Properties:

• Reverse function (unlocked in de-energized mode)

• Piston contact with door status indication (closed/open)

• Built-in protection diode for increased electrical safety

• Breaking strength of 9 kN (approx. 900 kg)

• Guarantees opening despite strip pressure of up to 40 kg in both forward and reverse function

• Knock-proof and reversible for both right- and left-hand doors

• Capable of locking out hook bolts or straight bolts

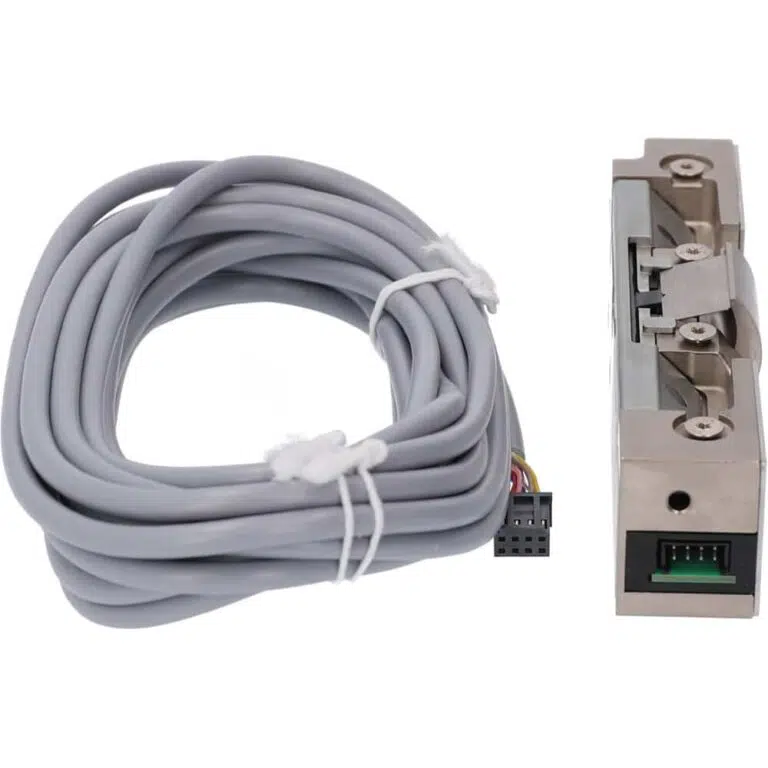

• 5 meter cable included (halogen-free)

Technical specifications:

• Power supply: 12 V DC (+15% -10%) 220 mAh / max 600 mA or 24 V DC (+15% -10%) 110 mAh / max 300 mA

• Piston contact: Microswitch single-pole changeover, max. 30 V DC, 1A

• Durability: Grade X according to SS-EN 14846

• Corrosion: Grade M according to SS-EN 14846

• Security: Grade 3 according to SS-EN 14846

• Security electrical manipulation: Grade 1 according to SS-EN 14846

• Breaking strength: 900 kg

• Door hinge: Right, Left

• Cable included: No

• Strip pressure: 40 kg

• Lock type: Single latch lock, Double latch lock

• Product dimensions: Width: 25 mm, Depth: 35 mm, Height: 90 mm

• Piston contact: Yes

• Voltage AC/DC: DC
