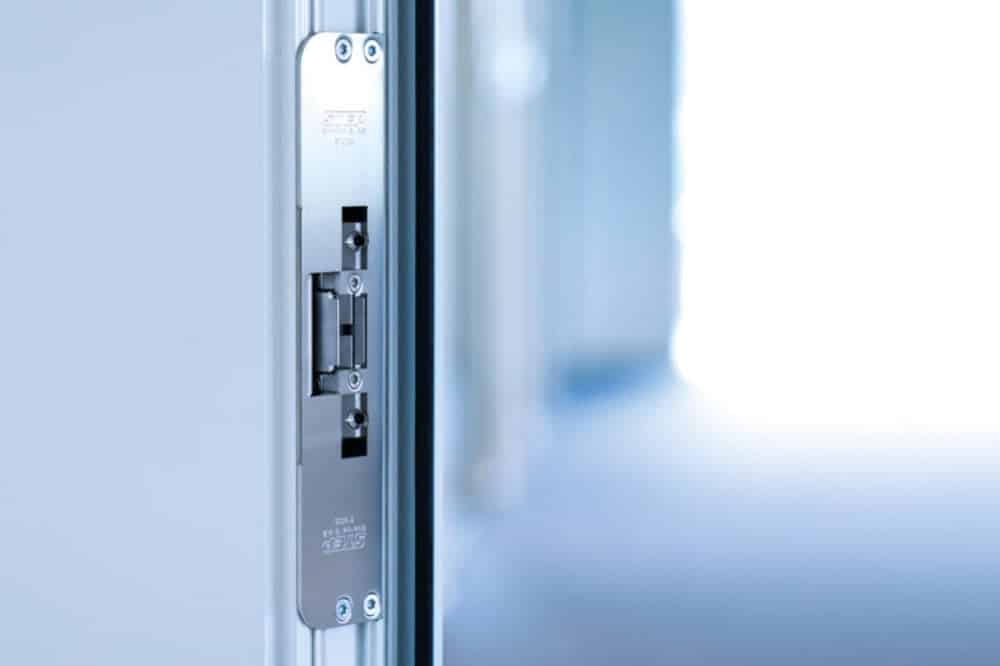

Electric strike STEP 90 Adjustable 24V

STEP 90 is a fire-approved electric strike with adjustable function and high security. Equipped with HPR® technology and a breaking strength of 1,200 kg, designed to withstand high opening frequency and fire resistance up to E/EI120.

Electrical end plate

STEP 90 Preload HPR is a high-quality electric strike plate that combines minimal dimensions with superior security and long service life.

It is fire-approved for use up to E/EI120 according to SS-EN 14846:2008 and has undergone rigorous testing to meet fire resistance and ensure reliable operation.

The patented HPR® technology allows the door to open even under high strip pressure of up to 250 kg.

The reversible function allows STEP 90 to be either forward facing or reverse facing (locked or unlocked in de-energized position), making it flexible for installation in different door systems.

With a breaking strength of 1,200 kg (approx. 12 kN) and factory tested for up to 1,500,000 cycles, STEP 90 offers long-lasting and reliable function.

Properties:

• Switchable forward or reverse function (locked or unlocked in de-energized mode)

• Certified for fire resistance up to E/EI 120 according to SS-EN 14846:2008

• Built-in protection diode for increased electrical safety

• HPR® technology guarantees opening despite a strip pressure of 250 kg (approx. 2.5 kN)

• Breaking strength of 1,200 kg (approx. 12 kN)

• Knock-proof and reversible for both right- and left-hand doors

• Screw holes for slanted screws in the back edge

• Suitable for single-latch and double-latch locks in the Connect, Modul and Narrow Profile series

Technical specifications:

• Power supply: 12 V DC (+15% -10%) 220 mAh / max 600 mA or 24 V DC (+15% -10%) 110 mAh / max 300 mA

• Durability: Grade X according to SS-EN 14846

• Corrosion: Grade M according to SS-EN 14846

• Security: Grade 3 according to SS-EN 14846

• Security electrical manipulation: Grade 1 according to SS-EN 14846

• Fire tested: 120 min

• Breaking strength: 1200 kg

• Door hinge: Right, Left

• Cable included: No

• Strip pressure: 250 kg

• Lock type: Single latch lock, Double latch lock

• Product dimensions: Width: 25 mm, Depth: 28 mm, Height: 90 mm

• Piston contact: No

• Voltage AC/DC: DC
