Remote indicator for security systems 5 – 25 volts

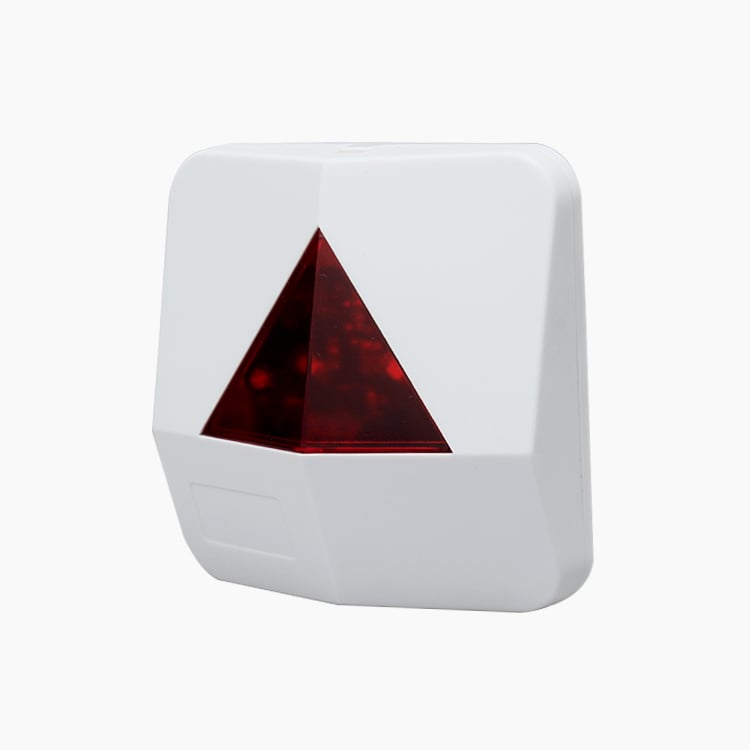

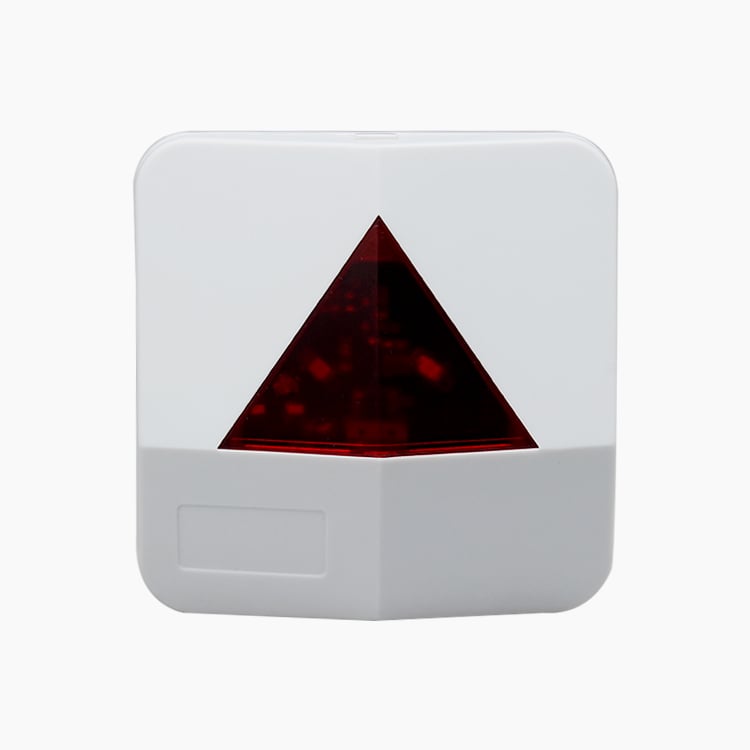

Remote indicator TD-SL37 – LED indicator, White

The TD-SL37 is a remote indicator (LED/diode) which provides a clear visual signal when a connected alarm input is activated. It is used when you want an event to be clearly visible in a different location than where the sensor or control panel itself is located.

It is not an alarm in itself and not a sensor – without one indicator which shows the status of the facility it is connected to.

Fits multiple types of alarm systems

TD-SL37 can be used as a visual indication in several types of installations, for example:

• Fire alarm (indication from fire detector/alarm zone)

• Burglar alarm (indication from alarm zone, magnetic contact, PIR, etc.)

• Telecommunication/signal and technical facilities (status indication, alarm output, error indication)

• Other low voltage systems where you need a clear LED indication

Benefits & features

• Clear visual indication in case of alarm or activation

• High-efficiency LED for good visibility

• Wide voltage range: 4.5-25.5VDC

• Low power consumption: 6–10mA

• Robust ABS housing for long life

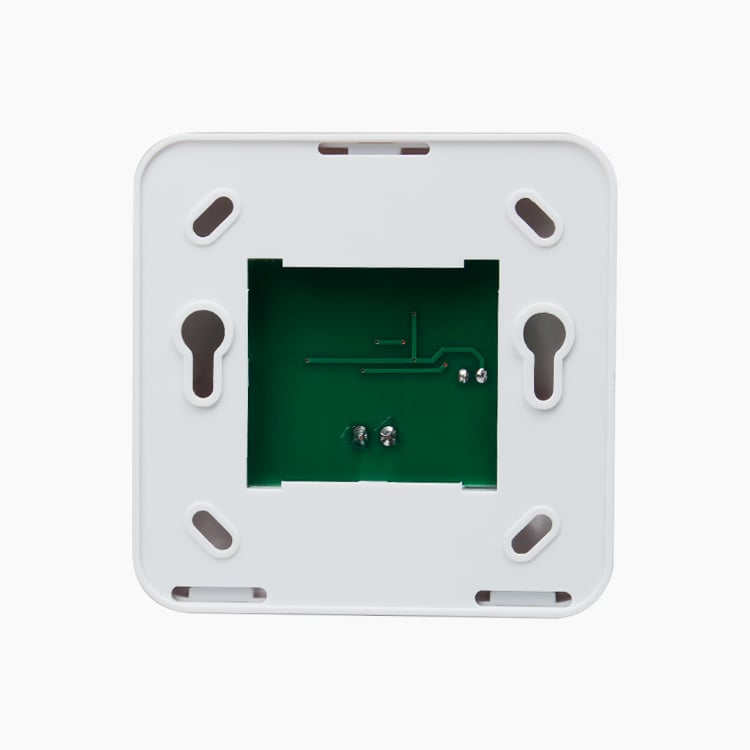

• Compact format for fixed installation

Technical specification

• Model: TD-SL37

• Paint: White

• Voltage: 4.5-25.5VDC

• Power consumption: 6–10mA

• Temperature range: −10°C to +50°C

• Humidity: 0–95 %

• Weight: 50 g

• Measure: 86 × 86 × 33mm

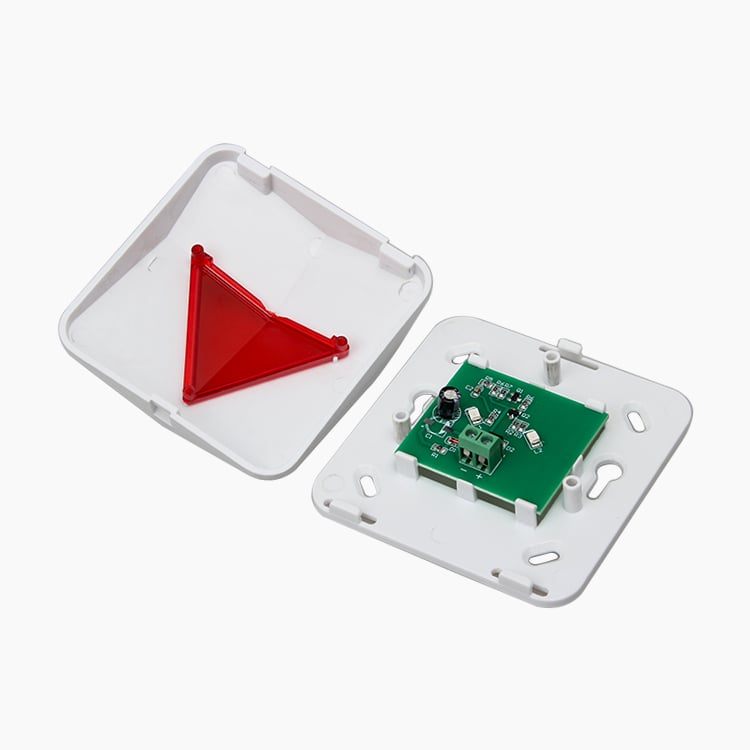

Installation

• Red cable: Plus (+)

• Black cable: Minus (−)
