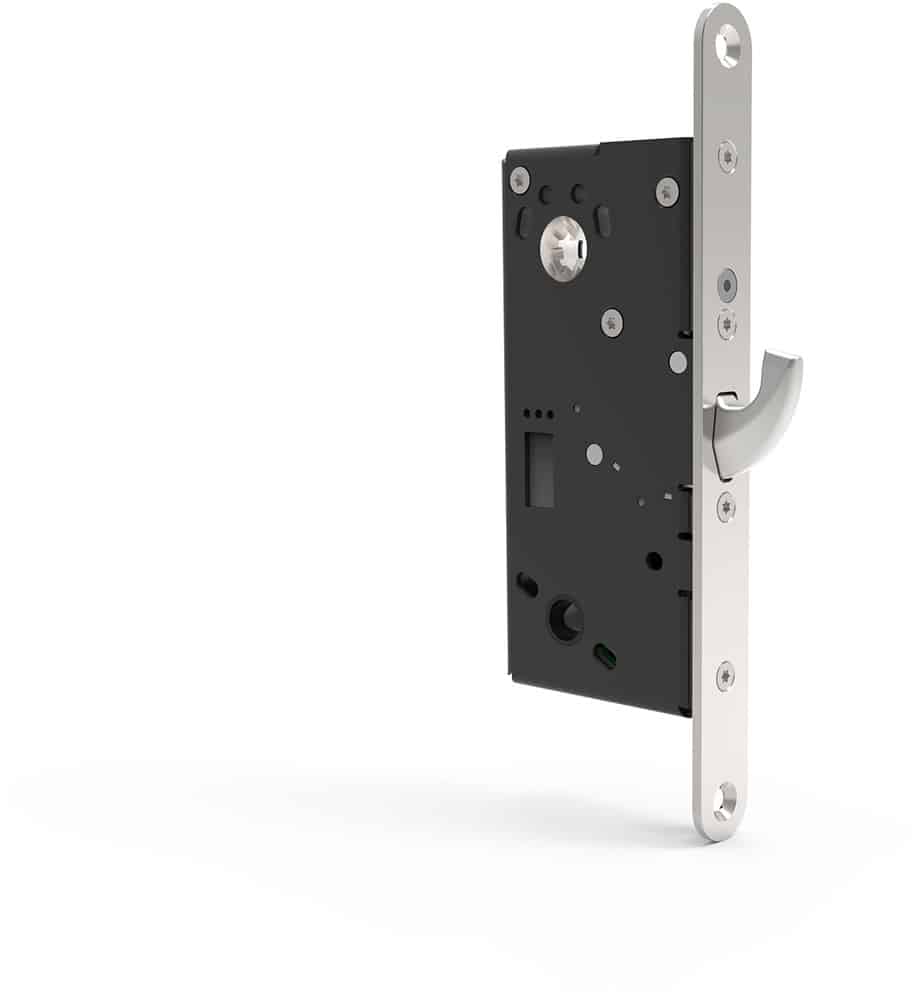

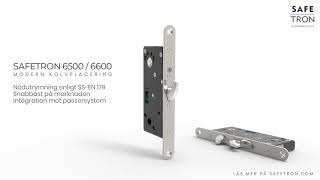

Safetron Motor lock 6500

SAFETRON 6500 is the market's most complete motor lock with modern piston placement - identical to locks in the ASSA connect series. This means that the motor lock is adapted to modern door recesses, regardless of whether they are fixed or replaceable end plates. The SAFETRON 6500 disarms in 0.1 seconds and therefore no separate day lock is normally needed on high-frequency doors. SAFETRON 6500 is adapted to be used together with door automation.

Typical areas of use are day, night and security locking in commerce, offices and industry and where very high demands are placed on security. The motor locks are certified according to SSF-3522 lock class 2B, 3, 4 and 5 as well as SS-EN 14846 Grade 7.

SAFETRON 6500 can be used in emergency escape routes together with SAFETRON Emergency escape accessories 795 according to the European standard SS-EN 179:2008, as well as SSF 3522 class 2B.

The SAFETRON 6000 series offers integrated control against several of the market's major access system suppliers. This means that the motor locks can be connected directly to the access system's door central without a control unit and can then be configured through the access system's software, which provides a simplified installation and a more cost-effective door environment. Choose a half set if you are to connect the motor lock integrated to an access system or if two motor locks are to be used with a control unit.

The SAFETRON 6500 has a reinforced hook control piston and is approved in RC3 and RC4 doors by the major door manufacturers. Motor locks in the 6000 series use 128-bit encryption for maximum security and allow cable lengths of up to 100 meters between motor locks and control unit. This means that the control unit can be installed in protected environments such as power centers or server rooms.

• Certified according to SSF-3522 lock class 2B, 3, 4 and 5 and SS-EN 14846 grade 7
• Mandrel depth 50 mm
• Reinforced hook rule piston
• Integrated control towards access systems
• Piston placement same as ASSA connect
• Opening speed: 0.1 seconds
• Can be opened with a key/knob (90 degree rotation)
• Adapted for door automation
• Emergency evacuation/re-accommodation together with Emergency evacuation accessories 795
• Automatic initialization
• Event log
• Series connection, up to two motor locks to a control unit
