Electric strike STEP 18 Left Right 24V 7mm Rule Connect

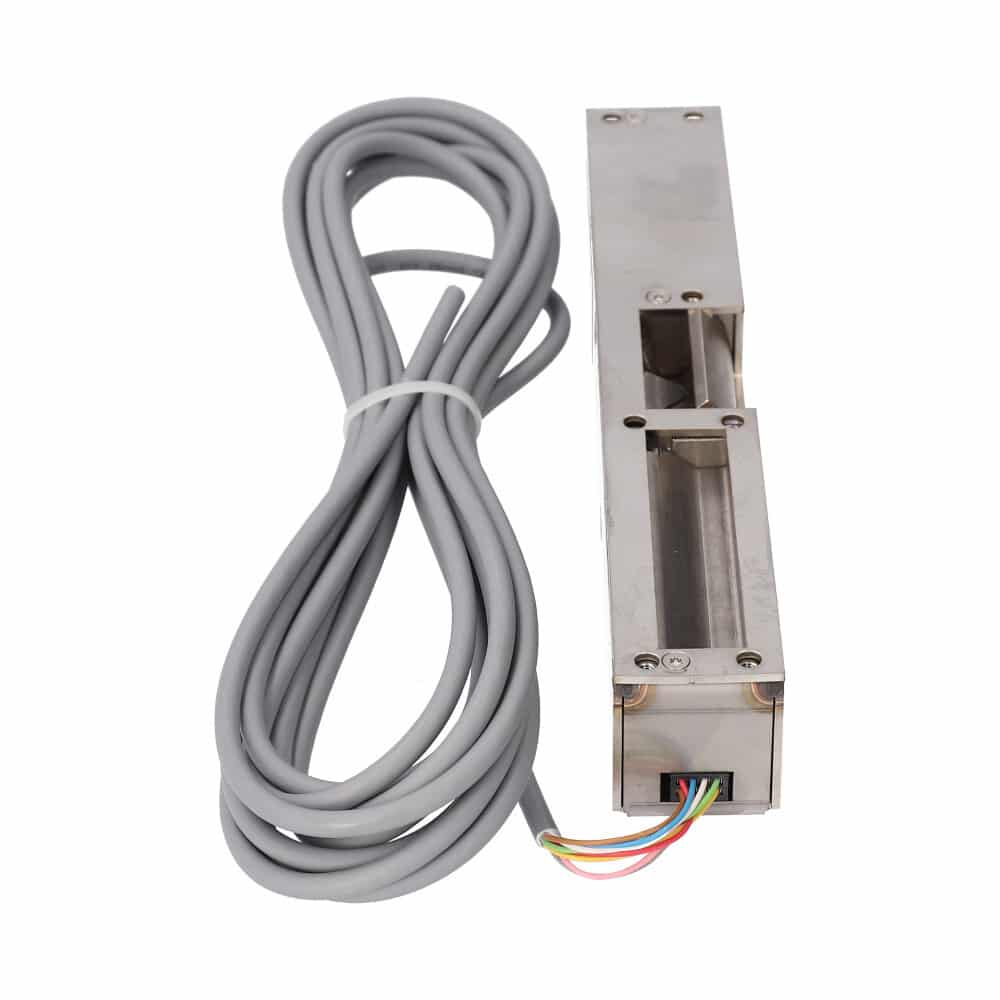

STEP 18 Secure is a high-security electric strike for left-hung doors with a 7 mm Connect bolt. Right-handed operation, fire class E/EI60, piston contact and 5 m cable. Withstands 1500 kg breaking strength.

The STEP 18 Secure electric strike from STEP's Secure series offers the market's highest security in door environments with intensive entry and exit.

This variant is adapted for left-hung doors with a 7 mm piston in the Connect series and delivers outstanding intrusion protection combined with fast and reliable function.

With the right-handed function (locked in the de-energized position), the electric strike is ideal for security-rated doors where passage is only permitted during energized operation.

The product is fire-approved up to E/EI60 according to SS-EN 14846 and approved for locking doors in RC4 security class.

STEP 18 is equipped with both a plunger switch and a latch switch, which provides clear status indication (open/closed, locked/unlocked) and enables seamless integration with access control systems and alarm solutions.

It can withstand strip pressure up to 5 kN (500 kg) and has a breaking strength of 15 kN (1500 kg), making it ideal for environments where both robustness and performance are required.

Comes complete with 5 meters of halogen-free cable, built-in protection diode, and is tamper-proof to resist external manipulation.

Features & Benefits:

• For 7 mm stud in the Connect series

• Reverse function – locked in case of power failure

• Left-hinged door

• Fire class E/EI60 – tested 60 minutes

• Piston contact and latch contact

• Withstands 500 kg of strip pressure, 1500 kg breaking strength

• Protection diode and surge protector

• 5 meters halogen-free cable included

Areas of use:
Suitable for security doors in government agencies, prisons, banks and other door environments where high security and daily stress are the norm.

Technical Specifications:

• Operating voltage: 24 V DC (21.6-27.6 V)

• Power consumption: 313 mA unlocked

• Door hinge: Left

• Cable length: 5 meters

• Breaking strength: 1500 kg

• List pressure: 500 kg

• Dimensions (WxDxH): 35 x 40 x 230 mm

• Lock type: Hook latch lock, Latched lock

• Piston contact: Micro switch, max. 30 V DC / 1 A

• Color/Finish: Stainless steel

• Assessments: SundaHus, Building Materials Assessment
