Engine lock STEP 352 Left Complete Set
Availability:
🟢 Central warehouse - Delivery 2-4 days
Item number: ST352-L-KPL
15128,00 SEK
🟢 Central warehouse - Delivery 2-4 days
STEP 352 is a motor lock that has been developed to ensure secure locking around the clock. The motor lock is developed for high-frequency use and can handle several million openings, which also happen as quickly as an electric strike. This provides a unique opportunity to get higher security where it is needed, and thus get the right locking on vulnerable and important doors.
STEP 352 is equipped with a hook bolt and automatic cylinder. The automatic cylinder allows you to lock your door with a pull handle on the outside, as emergency opening can be done with a key from the outside, in combination with evacuation according to SS-EN 179:2008 from the inside. The lock can therefore be used with advantage in an alarmed escape route.
The lock can combine evacuation, re-entry, fire protection and accessibility requirements, while providing the door environment with significantly higher intrusion resistance. The sturdy latch bolt ensures that the door is truly locked, not just held.
STEP 352 is equipped with STEP's unique automatic piston. When the door is opened electrically, the automatic piston can fold out, thus enabling opening with door automation. Immediately after the door is opened, the automatic piston extends, locks into position and functions just like a regular drop piston again.
The lock has a double blocking where the hook bolt blocking is also blocked. The position of the latch is read by an optical sensor so you can be sure that it is really locked. The latch is completely protected from access and thus ensures protection against manipulation.
STEP 352 is equipped with FreeDrive®, our unique and patented technology that completely disengages the lock's motor and gearbox every time the door is mechanically unlocked.
This minimizes wear and tear when using the handle, knob, key or escape fitting.

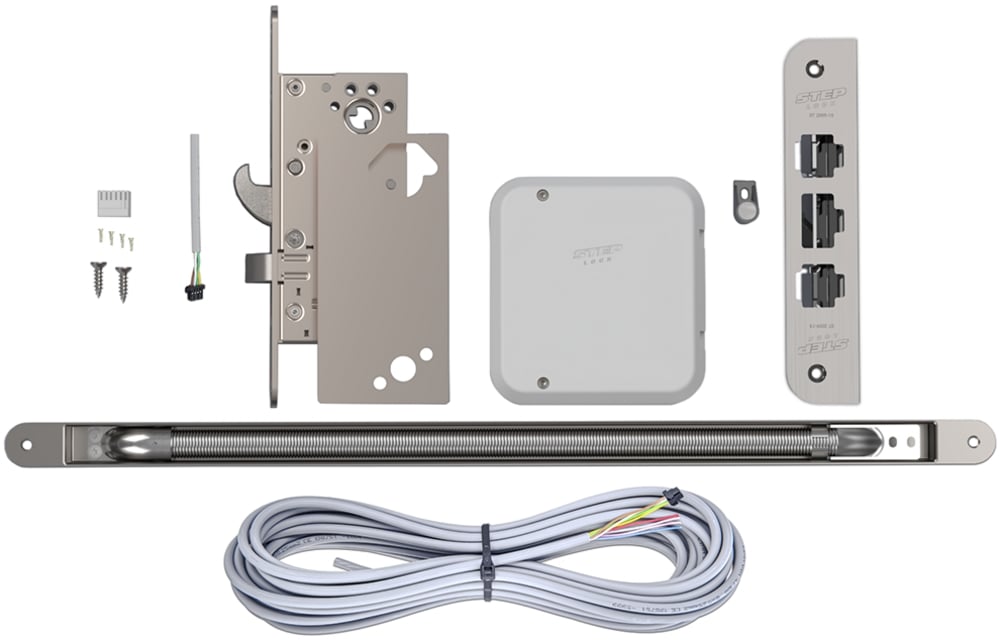

The article contains:
- Engine lock ST352-L
- Control unit 300C
- Frame transfer ST1283
- Connection cable ST0916H 10m
- End plate ST2009-15
- Drill protection ST1199
- Magnetic contact ST0910
- Screw and Connector Set ST1192
Properties:
- Not reversible
- Unlocks in less than 0.1 second
- 50 mm mandrel depth
- Modern piston placement
- With unique automatic piston
- Both controllers handle rehousing
- FreeDrive® technology
- Tamper-proof locking technology
- Encrypted communication OSDP AES-128
- Guarantees opening despite strip pressure of up to 80 kg
- Evacuation and re-occupation are ensured together with STEP Exit emergency evacuation fittings
- Designed for use in high-frequency doors
Function:
- The hook bolt and automatic piston lock/unlock electrically via an opening signal from an access system, code lock, elbow switch or similar.
- The hook bolt and automatic piston lock/unlock mechanically via the cylinder rower from the inside and outside
- The automatic piston is retracted mechanically via the cylinder rower with a push from the inside and outside.
- Normal passage occurs via an opening signal from an access system, code lock, elbow switch or similar from the inside and outside.
| Article | 166010 |
|---|---|
| Trademark | STEP |
| Brand ID | ST352-L-KPL |
| Mandrel depth | 50 mm |
| Emergency evacuation | Yes |
| Panic escape | No |
| Fire tested | 120 min |
| Color surface treatment | Matte Stainless |
| Cable included | Yes |
| Cable length | 10 meters |
| Complete set | Yes |
| Encrypted communication | Yes |
| Lock housing depth | 76.5mm |
| Narrow profile module | Module |
| Voltage ACDC | AC/DC |
